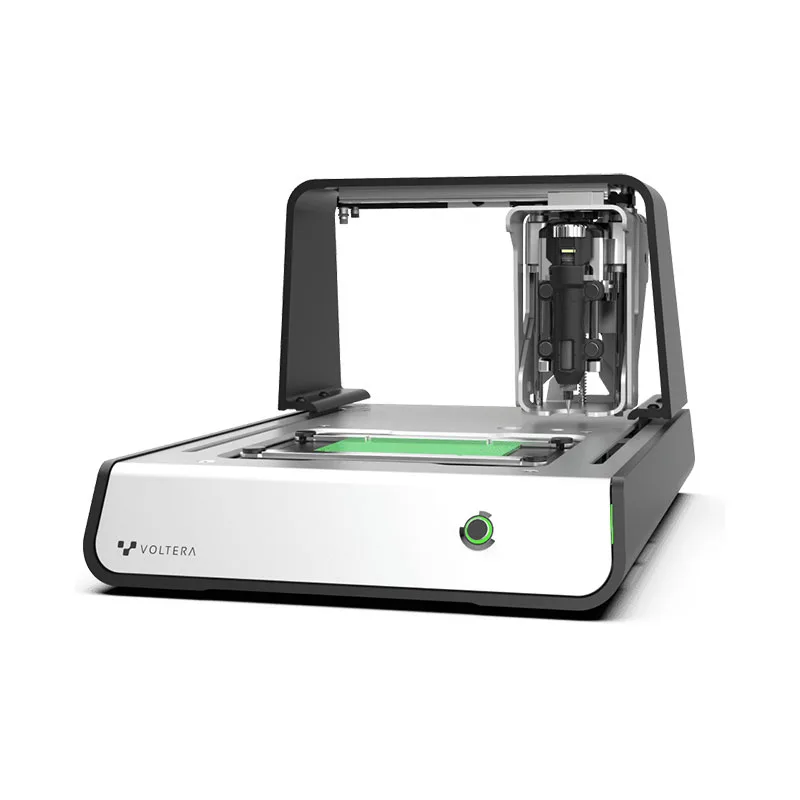

Voltera V-One

599,00 zł

4-in-1 PCB Printer for Rapid Electronics Prototyping

The Voltera V-One is a compact 4-in-1 PCB printer that combines conductive trace printing, hole drilling, solder paste dispensing, and reflow soldering in a single device. This allows a functional PCB prototype to be created in an hour instead of days or weeks. According to the manufacturer, the device allows for up to 15 prototypes per day—without the need for outsourcing. The print bed heats up to 240°C, enabling both curing conductive paint and reflow solder directly onto the board. The V-One is ideal for electronic prototype development and assembly, technical education, and makerspaces, ensuring full intellectual property protection thanks to in-house production. Chemikonics supplies the device along with consumables and technical support in the Polish market.

Specification
Minimum track widthTraces
Workspace (print)128 116 mm × mm × mm 3
XYZ resolution10 µm × 10 µm × 1 µm
Number of layersone-sided, two-sided
TechnologyDirect Ink Write (DIW)
Fixing the substrateclamping
Substrate thickness1--3mm
Maximum temperature of the heating table240°C
CNC spindle speed11,000 rpm (RPM)
Syringe capacityup to 2 ml
Dosed materialssoldering pastes, Conductor 3 conductive ink (silver)
File formatGerber

Substrate
FR1FR4
Perfect for
R&D departmentsTechnical universitiesHardware startupsElectronics manufacturersMakerspaces

More about the product →
Ask about the product →

Beige
Black
Clear
Compare
Add to wishlist
SKU: No data Category:
Description
Additional info
Color

beige

Brand

Eva Solo

Thickness

0.39"

Diameter

1.58"

strap size

Unisex

Similar products

New
V-One Starter Pack – Chemikonics
Compare

V-One Starter Pack

599,00 zł

Voltera V-One Printer Consumables Kit

The V-One Starter Bundle includes everything you need to get started immediately. With fresh silver paint, fresh solder paste, flux, new nozzles, and a complete starter project, this package renews your setup with the essential consumables that come with a brand-new device. This bundle is ideal if you bought your V-One printer secondhand, work in a shared lab where some components have been lost, or are restoring your equipment to service after a long period of shelf storage.

Kit contents
Conductive inkConductor 4 – paint with silver nanoparticles, 1 pc.
Solder pasteT4 Sn42Bi57.6Ag0.4, 1 pc.
Dosing nozzles230 µm, disposable, 25 pcs/box
FR1 foundations2″×3″, 10 pcs/pack
FR1 foundations3″×4″, 6 pcs/pack
Solder wireSn42Bi57Ag1, 1 pc.
Soldering flux1 pieces.
Startup project"Hello World" component set, 1 pc.
compatibilityVoltera V-One printer
Ask about the product →
Add to wishlist
Quick view
New
225 µm nozzles – 4 pcs – Chemikonics
Compare

225 µm nozzles – 4 pcs.

Metal dispensing nozzles 225 µm – 4 pcs in a set, for V-One and NOVA

225µm nozzles are metal dispensing tips that provide high resolution and precise application of conductive paint and solder paste on V-One and NOVA printers. The kit includes four 225µm inner diameter nozzles, manufactured in the USA by Subrex.

Product data
compatibilityVoltera V-One and NOVA printer
Applicationprecise dosing of conductive paint and solder paste
Kit contents4 metal nozzles with an internal diameter of 225 µm
ManufacturerSubrex (USA)
Ask about the product →
Add to wishlist
Quick view
T4 Sn42Bi57.6Ag0.4 Solder Paste – Chemikonics
Compare

T4 Sn42Bi57.6Ag0.4 solder paste

,

Lead-free tin-bismuth-silver solder paste for Voltera V-One printer – lower melting temperature, ideal for silver printed paths

T4 Solder Paste is a lead-free, RoHS-compliant tin-bismuth-silver (Sn42Bi57,6Ag0,4) alloy paste designed for soldering SMD components on V-One printed PCBs, as well as on factory-printed PCBs. The addition of bismuth lowers the remelting temperature compared to other alloys, making T4 paste ideal for working with V-One printed silver traces.

Product data
compatibilityVoltera V-One printer
ApplicationSMD soldering on PCBs (printed on V-One and factory-made)
Package2 ml cartridge
Production countryUSA
Alloy compositionSn42Bi57,6Ag0,4 (tin-bismuth-silver), lead-free, RoHS compliant
Particle sizetype T4
Efficiencyapprox. 11,000 pads per cartridge (0603 pads)
Durabilityapprox. 12 months at room temperature
Storagelong-term in a cool, dark place
Recommended nozzlesVoltera disposable nozzles; for greater precision, Subrex 225 µm nozzles
Ask about the product →
Add to wishlist
Quick view
Copper rivets 0,4 mm 200 pcs – Chemikonics
Compare

Copper rivets 0,4 mm 200 pcs.

0,4mm copper rivets for creating vias connecting the top and bottom layers of a Voltera V-One printed circuit board

Rivets are small copper bushings used to create vias on PCBs. Vias create a mechanical connection between the top and bottom layers of a printed circuit board (PCB) printed on a V-One printer. Rivet installation requires a 0,40 mm riveting tool matched to the rivet size.

Product data
compatibilityVoltera V-One printer
Contents of the package200 copper rivets
Inner diameterTraces
Production countryGermany
Head diameterTraces
Recommended drill sizeTraces
Riveting tool sizeTraces
Ask about the product →
Add to wishlist
Quick view
V-One Drill Set – Chemikonics
Compare

V-One Drill Set

Set of 10 precision PCB drill bits for the Voltera V-One drilling module – most commonly used sizes for through-holes and mounting holes

The V-One Drill Bit Set is a complete set of 10 precision PCB drill bits, covering the most commonly used sizes. The drill bits are mounted to the V-One drilling module using a 2,5mm Allen key (not included). It's a practical solution for drilling through holes, mounting holes, and preparing boards for through-hole components.

Product data
compatibilityVoltera V-One printer drilling module
Kit contents10 drills (5 sizes, 2 each)
Mounting2,5 mm Allen key (not included)
Production countryUSA
Drill sizes2× 0,70 mm, 2× 0,80 mm, 2× 0,90 mm, 2× 1,00 mm, 2× 1,60 mm
Applicationdrilling through and mounting holes in PCBs
Ask about the product →
Add to wishlist
Quick view
Sn42Bi57Ag1 solder wire – Chemikonics
Compare

Sn42Bi57Ag1 solder wire

Solder wire for hand soldering components on V-One and NOVA boards – low melting temperature, chemically tested with Voltera paint

Sn42Bi57Ag1 solder wire is used for hand soldering components on Voltera printed circuit boards and factory-made circuit boards. Used with the appropriate amount of flux, it ensures a strong, durable solder joint. The wire's chemical composition has been tested for compatibility with Voltera conductive paint.

Product data
compatibilityVoltera V-One and NOVA printer
Alloy compositionSn42 Bi57 Ag1
DiameterTraces
Production countryUSA
Flux content2,2 %
Weight10 gr
Recommended soldering temperature180 ° C (356 ° F)
Compatibilitylead-free, RoHS compliant
Ask about the product →
Add to wishlist
Quick view
New
Voltera V-One Classroom Bundle – Chemikonics
Compare

Voltera V-One Classroom Bundle

599,00 zł

Educational kit of teaching materials and projects for the Voltera V-One printer for classrooms and laboratories

The Educational Classroom Bundle is a comprehensive set of consumables and ready-made teaching projects for the Voltera V-One printer, designed for instructors and lab supervisors introducing the V-One into their classroom curriculum. It includes over 150 FR1 substrates, 100 disposable nozzles, and 30 tutorial kits with step-by-step instructions, taking students from printing basics to fully assembled, working circuits. Practical accessories such as reference rulers and antistatic tweezers are also included.

Kit contents
Conductive inkConductor 4 – silver nanoparticle paint, 3 cartridges
Solder pasteT4 Sn42Bi57.6Ag0.4, 3 inserts
Dosing nozzles230 µm, disposable, 4 boxes (25 pcs/box)
FR1 foundations2″×3″, 10 packs (10 pcs/pack)
FR1 foundations3″×4″, 5 packs (6 pcs/pack)
FR1 foundations4″×5″, 5 packs (6 pcs/pack)
The "Hello World" Projectcomponent set, 15 sets
"99 Decimal Counter" projectcomponent set, 10 sets
Pulse Generator Projectcomponent set, 10 sets
Project "Voltage Regulator"component set, 10 sets
Floor clampsV-One Substrate Clamps, 1 Pack (2 pcs/pack)
Wing screwsM3×10, 2 packs (4 pcs/pack)
Antistatic tweezers3 pieces.
Reference rulers5 pieces.
compatibilityVoltera V-One printer
Ask about the product →
Add to wishlist
Quick view
New
Voltera NOVA – Chemikonics
Compare

Voltera NOVA

599,00 zł

Direct Ink Write (DIW) Platform for Printed Electronics and Functional Materials

Voltera NOVA is a modular Direct Ink Write (DIW) platform that enables precise dispensing of functional materials—solder pastes, conductive paints, dielectrics, and other functional materials—and rapid prototyping of printed electronics. The system works on rigid (PCBs, glass, ceramics), flexible (PI, PET), stretchable (TPU), and porous (paper, fabric) substrates, accelerating R&D by up to 90% and reducing material costs by up to 96% (according to the manufacturer). Chemikonics supplies the device along with consumables and technical support in the Polish market.

Specification
TechnologyDirect Ink Write (DIW)
Minimum track width0,1 mm *
Workspace (print)220 300 mm × mm × mm 40
Number of layersup to 4 layers (stack-up)
XYZ resolution2,5 µm × 7 µm × 1,25 µm
Pressure controlclosed loop
Material temperature controlto 40 ° C
Compatible modulesSmart Dispenser, Smart Probe, Vacuum Table
Fixing the substrateraised clamps, vacuum table, M5 mesh (40×40 mm)
Substrate thicknessup to 30 mm
Syringe capacityup to 2,5 ml
File formatGerber, SVG (beta)
Dosed materialssolder pastes, conductive paints, dielectrics and other functional materials
Material viscosity1,000–1,000,000 cP
Number of module slots2
interfaceweb application (browser)
CommunicationEthernet, USB-A, Wi-Fi (with adapter)
Substrate
PCB / glass / ceramicsFlexible films (PI, PET)Stretchable materials (TPU)Porous substrates (paper, fabrics)
Perfect for
R&D departmentsUniversity laboratoriesFlexible electronics manufacturersMaterials startups / deep-techResearch centers
Applications
Electrodes/sensors (ECG)Printed batteriesRFID / antennasIntelligent textilesEL circuits
More about the product → Ask about the product →
